Take a quick look around your home or office, and you’ll undoubtedly see something that is either made of or contains copper. This abundant and extremely versatile metal has played an important role in the human existence for more than 10,000 years. While copper is no longer the primary ingredient in pennies, which consisted of 95% copper until 1982 (they’re now made of copper-coated zinc), this soft, reddish brown metal is a primary component in many manufacturing and industrial processes. Major copper applications include electrical wiring, plumbing, roofing and industrial machinery. Copper is also a commonly used metal in the electroplating industry.
What Is Copper?
Copper is a naturally occurring chemical element that is mined from the crust of the earth. Mined copper sulfide deposits contain approximately one percent copper. Extracted copper is relatively soft, which in part explains the presence of one of its most notable characteristics: its excellent electrical and thermal conductivity. Copper is second only to silver in these two areas; however, it is much less expensive than silver. Copper is also naturally resistant to corrosion. It reacts with the oxygen in the atmosphere to form a layer of copper oxide that protects against rust. However, copper will tarnish when exposed to sulfides.
History of Copper Use
While humans have been using copper for about 10,000 years, the actual process of extracting copper from its ores began approximately 7,000 years ago. It took another 2,000 years for people to discover the soft copper could be strengthened by alloying it with other metals. The first known alloy created by humans was bronze, which is a combination of copper and up to 25% tin. This led to what became known as the Bronze Age, where many tools, cookware and other products were made from bronze. Brass, which is an alloy of copper and zinc, was first developed about 2,500 years ago.
Over the centuries, copper has been used for many purposes. The Ancient Romans used copper mined in Cyprus for currency. In fact, copper’s chemical symbol of Cu was derived from the Latin word “cuprum,” which means “from the island of Cyprus.”
The Swedes made use of copper currency to fund their war efforts during the 17th century. Copper also became a material favored by many sculptors during the Renaissance period. The daguerreotype, a forerunner of the modern photograph that was developed in the 19th century, consisted of a piece of silver-plated copper. The Statue of Liberty was even sculpted from copper by French sculptor, Gustave Eiffel.
Copper Electroplating
Electroplating copper onto other metals has been a widespread industrial practice for many years. Electroplating is a procedure where a metal part, known as a substrate, is placed in an electrolyte solution. An electrical current is then introduced into the plating bath, which deposits a thin metal coating onto the surface of the substrate. Electroplating can be used for a number of purposes, such as enhancing corrosion and wear resistance, improving electrical and thermal conductivity, adding aesthetic appeal and promoting adhesion. The three basic types of copper electroplating include:
- Alkaline cyanide: An alkaline cyanide copper bath provides excellent throwing power and uniform deposit thickness. However, the cyanide component makes this plating solution extremely toxic and must be handled with extreme care.
- Alkaline non-cyanide: Non-toxic, cyanide-free plating solutions are now available. However, they may not be as effective as alkaline cyanide baths in all copper plating applications. For instance, using a non-cyanide alkaline solution during rack plating of zinc die castings may produce a non-adhering copper deposit, essentially making the entire procedure ineffective.
- Acid copper: An acid copper bath consists of copper ions, additives, acids and either fluoborate or sulfate ions. Advantages of acid copper solutions include low material cost, wide range of composition and relatively easy bath maintenance and control. However, the acidic nature means this type of bath is not compatible for plating directly onto active metals such as zinc and steel due to the lack of proper adhesion.
Need for Copper Plating onto Plastics
Copper Plating Applications
Copper’s excellent electrical and thermal conductivity makes it an attractive choice for electroplating on substrates where these properties are essential for the performance of the product. Other common copper plating applications include being an undercoat to promote adhesion, working as surface preparation prior to soldering, building thickness and acting as a heat stop-off for masking.
One of the most beneficial features of copper plating is its relatively low cost, especially when compared to electroplating processes involving precious metals such as gold, silver and palladium. Copper also offers high plating efficiency and excellent surface coverage, while being less hazardous to the environment than many other types of plated metals.
Plating Copper onto Non-Metallic Surfaces
Copper plating is not limited to metal-on-metal applications. It can also be extremely effective when used with non-metallic surfaces, particularly plastics. The copper coating will “metallize” the non-metallic surface, which can make it electrically conductive and provide additional benefits such as strengthening and protecting the substrate. Plating on plastics can also add a metallic shine to the finished product, which is an advantage in manufacturing applications where appearance is important.
Evolution of Plating on Plastics
Prior to the 1960s, plating on plastic was primarily used for aesthetic purposes. Effective processes that provided the coating adhesion required for more demanding industrial applications had yet to be developed. Eventually though, technological advances in chemical processing techniques enabled the widespread use of commercial plating on plastic processes. Industries where plating on plastic is implemented today include automotive, plumbing, appliance and electronics manufacturing.
Polypropylene is regarded as the first plastic that could be plated on successfully. Today, ABS (acrylonitrile-butadienestyrene), which is used to manufacture numerous products such as golf club heads, automotive trim components, drain pipe systems, luggage and various household and consumer goods, is by far the most widely plated plastic. Other “plateable” plastics include:
- Polyethersulfone
- Polyetherimide
- Phenolic
- Urea formaldehyde
- Diallyl phthalate
- Polysulfone
- Polyphenylene oxide (modified)
- Polyarylether
- Polycarbonate
- Polyacetal
- Mineral-reinforced nylon (MRN)
- Teflon™
Copper Plating on Plastic
Perhaps the most common application of plating copper onto non-metallic surfaces is the process of copper plating on plastic. This process is primarily used in situations where it is necessary to make the substrate electrically conductive. Although plating on plastic has come a long way, it is still a difficult procedure to execute effectively, and only a few companies have mastered the process.
Remember that copper plating, and electroplating in general, relies on electrodeposition to coat the substrate. Unlike many metallic substrates, however, plastics do not conduct electricity. In order for the copper ions in the bath to adhere to the surface of the substrate and to ensure the part is otherwise prepared for the electroplating process, it is necessary to perform a number of preliminary steps:
- Molding: Molding is necessary to ensure the plastic part is of the highest quality, which is essential for effective copper electroplating. Molding involves converting the plastic pellets into a shape suitable for plating.
- Cleaning: The use of cleaners will remove soil, dirt and debris from the plastic part. Most cleaning can be performed with a mild alkaline cleaning solution, although a highly-wetted chromic acid solution can be used to ensure thorough wetting prior to etching.
- Predipping: Predipping the cleaned part in a solvent prior to etching will improve the surface of highly-stressed parts, particularly those made of ABS and other organic polymers, which allows for a more uniform coating. It can also be used to swell the surface of normally hard-to-etch plastic parts, enabling the etchant to more readily attack the substrate surface.
- Etching: An etchant is a potent oxidizing solution that will eat away the surface of the plastic part to a certain extent, which provides two important benefits: it makes the part more amenable to accepting water, and it creates microscopic holes in the surface that promote better adhesion between the plastic and the metal ions in the plating solution.
- Neutralizing: Neutralizing entails the use of sodium bisulfite or a similar material to eliminate any excess etchant from the part.
- Preactivating: Preactivators are applied to enhance absorption of the activators. Preactivators will also deposit a film that conditions the plastic resin surface.
- Activating: An activator typically contains a precious metal such as gold, palladium or platinum, and it serves as a catalyst during plating.
- Accelerating: After activation, an accelerator is applied to remove excess stannous hydroxide, which is necessary to enable the precious metal in the activator to fulfill its role as a catalyst.
Electroless Plating
Once all of the above pretreatment steps have been completed, the next phase of the copper electroplating involves electroless plating. The electroless plating process deposits an adherent metallic film onto the surface of the substrate, which renders it electrically conductive. Electroless plating differs from electroplating in that no electrical current is introduced into the plating bath. Instead, deposition occurs via chemical reduction.

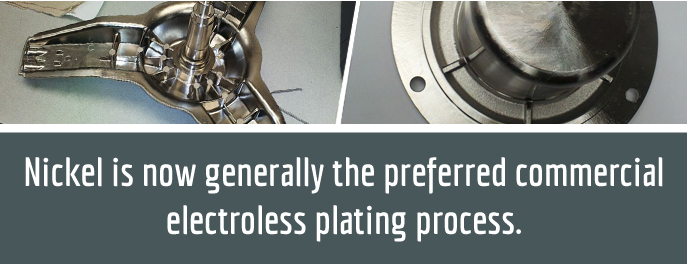

While nickel or copper may be used to formulate the plating solution, nickel is now generally the preferred commercial electroless plating process. Nickel baths are easy to control and will provide a desirable uniform plating result. It is recommended to run the part through either a Watts nickel or electrolytic copper strike afterwards to build up the electroless nickel deposit after initial part metallization.
Implementation of the Copper Electroplating Process
Once the electroless nickel coating has been applied, the plastic part is now ready for electroplating. Copper plating on plastic is performed in essentially the same manner as when plating on metallic surfaces. Here is a simplified explanation of the steps involved in the copper electroplating process:
- Setting up the plating station — which requires a rectifier (to provide the DC current), anode (consisting of a solid piece of copper), cathode (negatively charged electrode, i.e. the plastic substrate), the plating solution and the plating tank, rack or barrel
- Attaching the negative lead of the rectifier to the immersed substrate and placing the positive lead to the copper anode in the plating solution
- Turning on the DC current, which causes the anode to oxidize and results in the formation of copper ions, which are reduced at the cathode
- Metal electrodeposition of the copper ions begins to occur as soon as the electrical current is enabled
Post-Treatment
A copper-plated plastic object could tarnish, which can be prevented by a post-treatment cleaning. Polishing can also enhance the part’s resistance to corrosion and add a shine that will improve its appearance.
Factors Impacting Copper Electroplating Results
In general, the longer you apply the electrical current, the thicker the copper coating that is deposited onto the plastic substrate will be. The length of immersion time will also impact the final result when electroplating copper onto plastic, as will the bath temperature and the level of voltage. As a rule of thumb, choose the highest voltage level that achieves the desired plating outcome, while avoiding the formation of bubbles in the electrolyte solution.
Copper Plating Troubleshooting Tips
Whether you are performing copper plating on plastic or a metallic substrate, following a few helpful troubleshooting tips can increase the likelihood of a positive outcome:
- Choose the right bath chemistry (alkaline or acid) for your desired plating result
- If using a cyanide bath, ensure all contaminants are eliminated prior to plating
- Proper agitation of an acid bath will promote brightness and prevent high-current density burning
- The presence of a green tint in an acid bath is an indication of solution contamination
- Increasing the acid concentration in an acid copper bath can improve its throwing power, resulting in a more uniform copper coating
